Galvanized steel. Coated, coloured, certified.
The complete galvanized catalogue: hot-dip GI coils, corrugated roofing sheets, pre-painted PPGI coils and finished sheets in any RAL colour. Supplied mill-direct to roofing contractors, PEB fabricators, façade firms and infrastructure projects across the UAE, GCC and Africa.
A galvanized division built for roofs, frames and envelopes.
From the PEB fabricator rolling 0.50 mm trapezoidal sheets across a 200 m logistics shed, to the architect specifying PVDF-coated RAL 7016 panels on a hotel rainscreen. Every project rests on the same question: which coating, which substrate, which paint system, for which exposure.
TIC Dubai's GI division supplies that decision: hot-dip galvanized coil and sheet to ASTM A653, EN 10346 and JIS G3302, and pre-painted PPGI in PE, SMP, HDP and PVDF systems to any RAL colour, from a single coil to multi-thousand-tonne programmes.
Four product categories. The full galvanized range.
Bare hot-dip galvanized coils, corrugated roofing sheets, pre-painted PPGI coils and finished PPGI cladding sheets, every category configurable to your project.

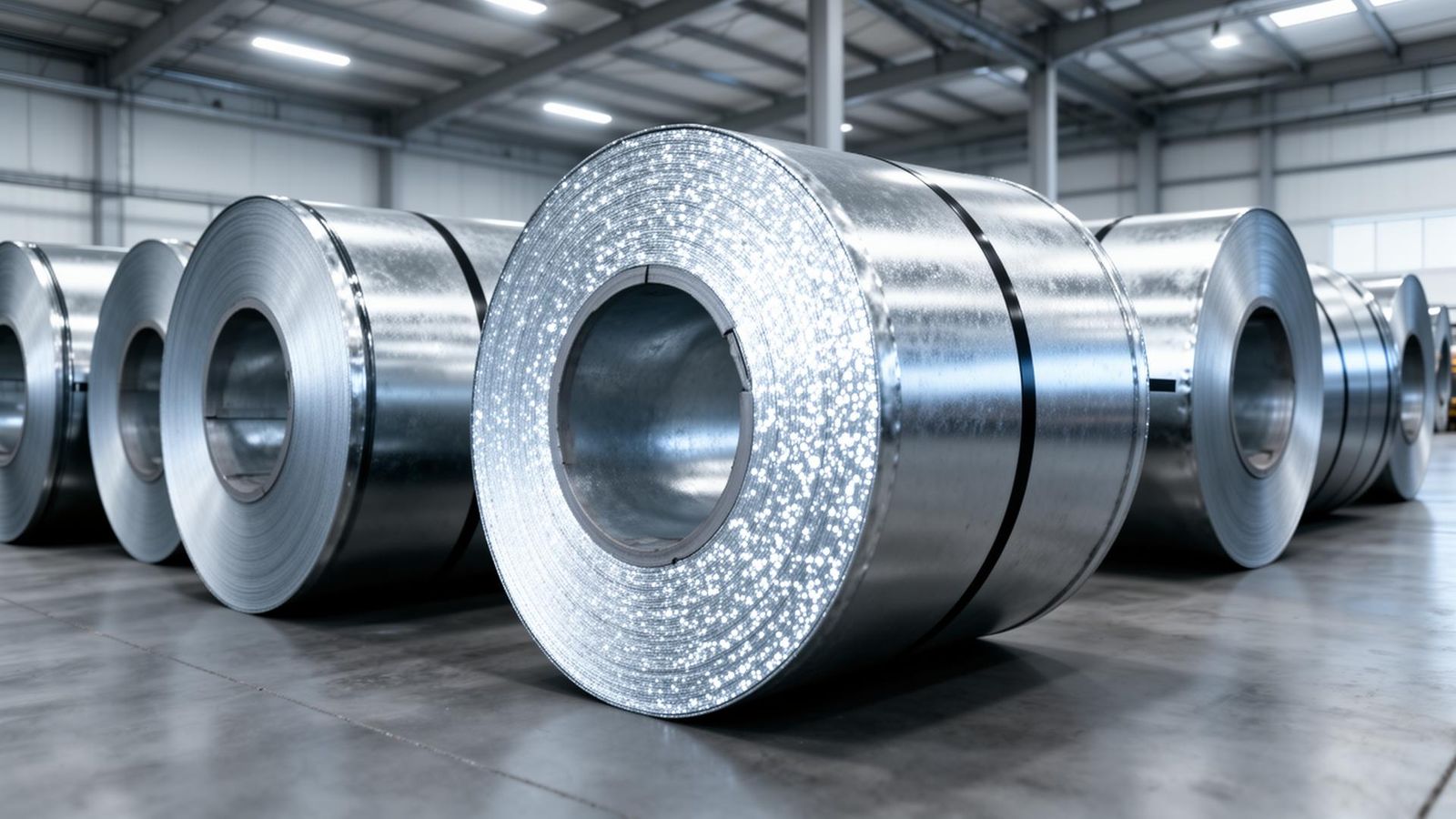

Hot-Dip Galvanized (GI) Coils
Hot-dip galvanized steel coil supplied to ASTM A653, EN 10346 and JIS G3302 , with commercial, lock-forming, structural and roofing grades for the UAE, GCC and African markets.

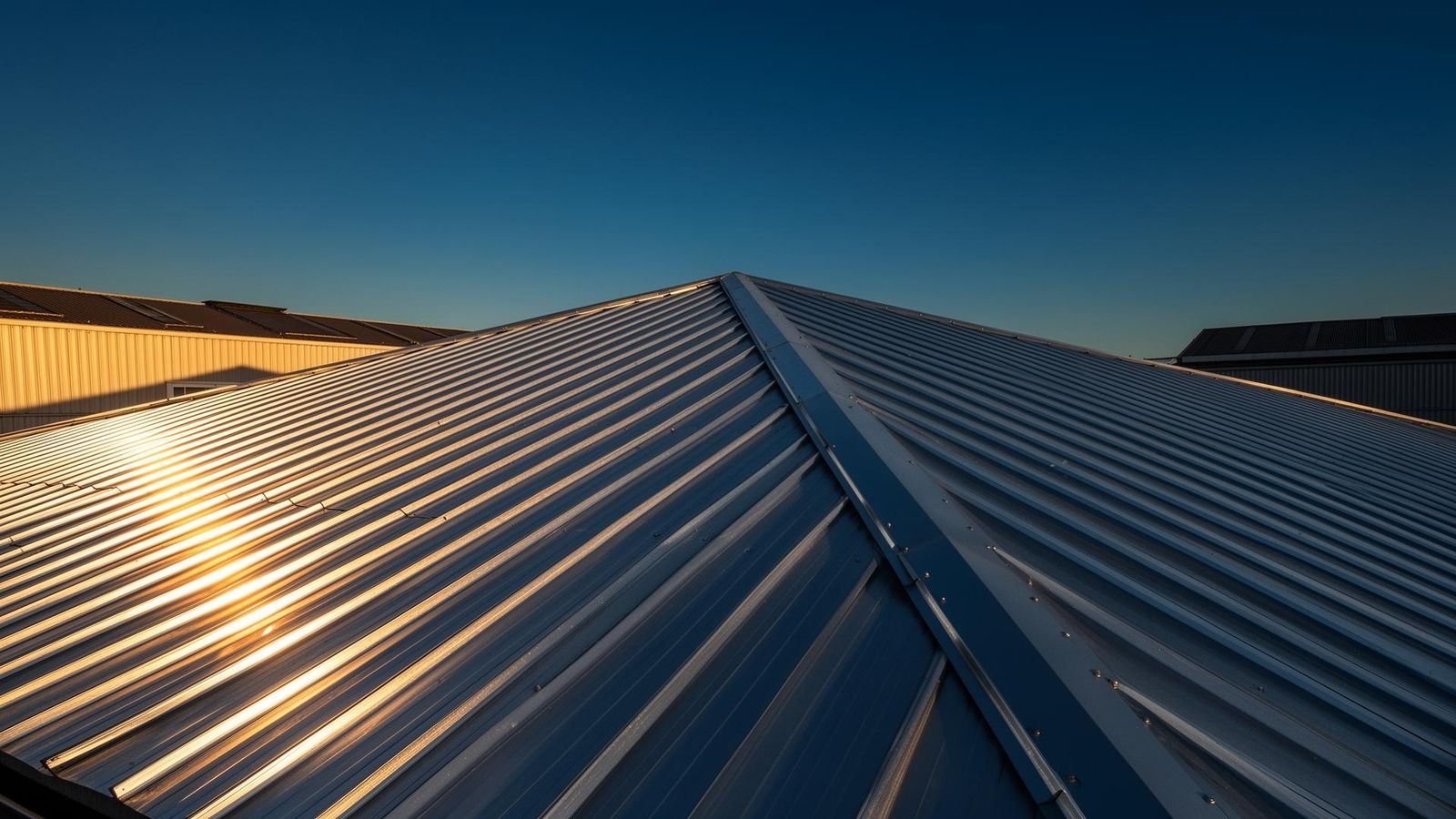

GI Corrugated Roofing Sheets
Hot-dip galvanized corrugated and trapezoidal roofing sheets, supplied in custom lengths, profiles and zinc coatings for warehouses, factories, infrastructure projects and agricultural buildings across the GCC and Africa.

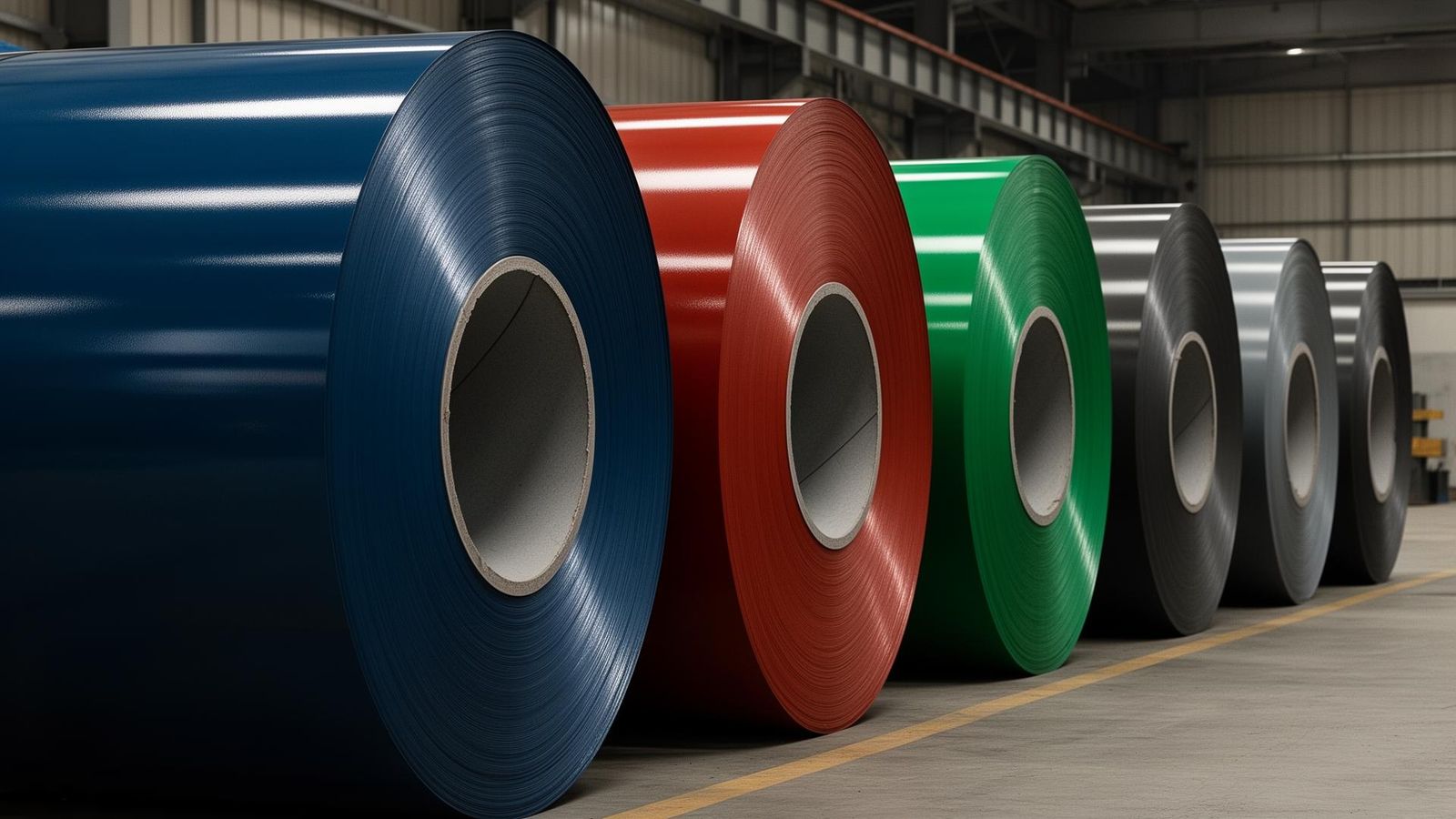

Pre-Painted Galvanized (PPGI) Coils
Pre-painted galvanized steel coils in PE, SMP, HDP and PVDF paint systems on Z120 / Z180 / Z275 substrate, supplied in any RAL colour for roll-forming, fabrication and architectural cladding.

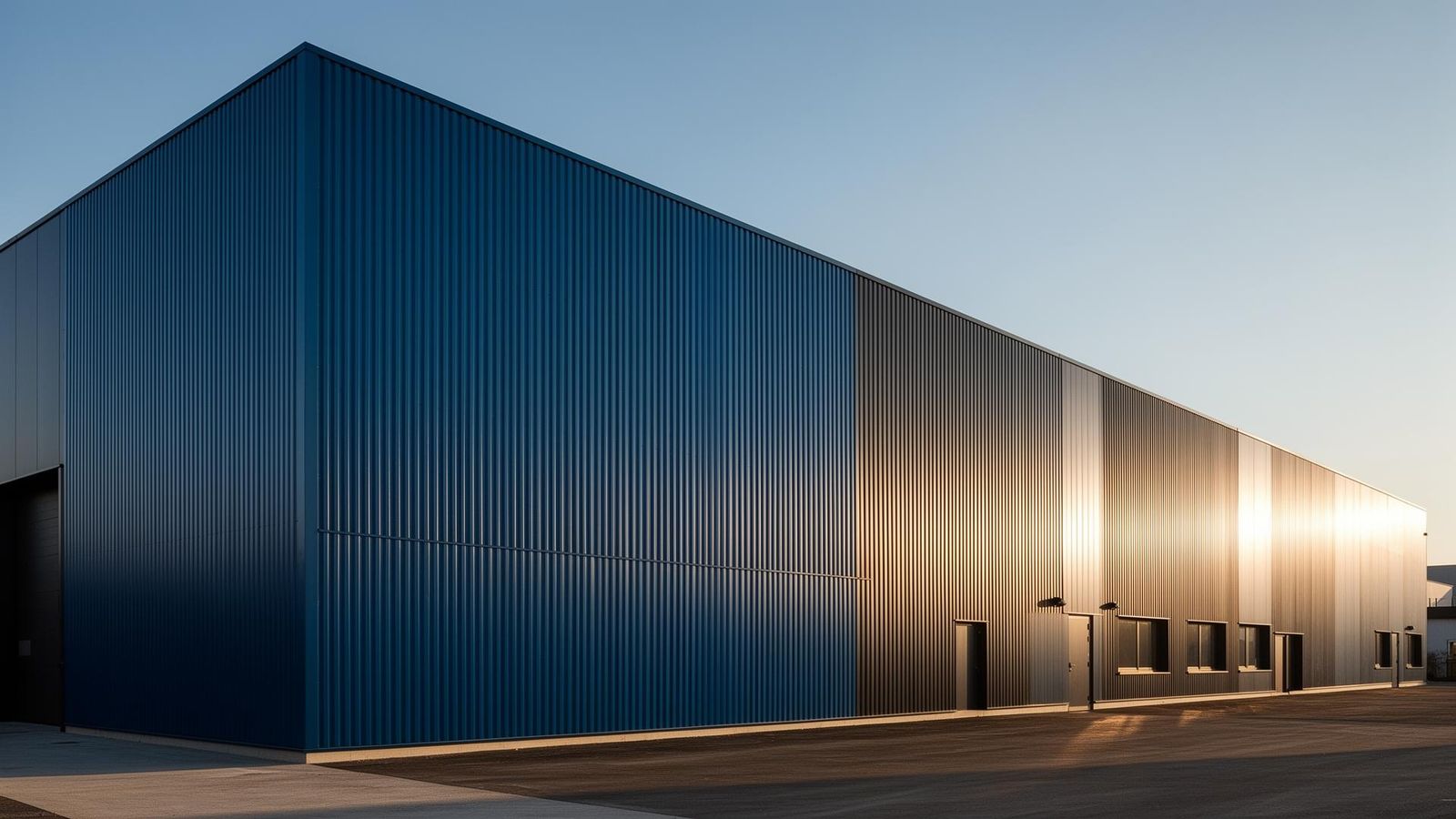

Pre-Painted Galvanized (PPGI) Sheets
Pre-painted galvanized sheets and roll-formed roofing & cladding panels in any RAL colour, supplied for architectural facades, industrial envelopes, sandwich panels and decorative applications.
Z60 to Z275, decoded.
Zinc coating mass is the single most important variable in GI specification, as it determines corrosion life, market acceptance and price. The number after the "Z" is the total mass of zinc in g/m² deposited across both faces of the sheet.
| Grade | Total zinc | Per face | Thickness | Service life | Typical market & use |
|---|---|---|---|---|---|
| Z60 | 60 g/m² | ≈ 30 g/m² / face | ≈ 4 µm / face | Internal / dry, short-life | Internal dry-wall studs, internal HVAC ducting, painted secondary use |
| Z80 | 80 g/m² | ≈ 40 g/m² / face | ≈ 5.6 µm / face | Internal / mild exposure | Door frames, sheet-metal fabrication, internal cladding, white-goods |
| Z100 | 100 g/m² | ≈ 50 g/m² / face | ≈ 7 µm / face | Mild atmospheric: 10 – 15 years | Light roofing, internal ducting, fabrication, PPGI substrate (entry) |
| Z120 | 120 g/m² | ≈ 60 g/m² / face | ≈ 8.5 µm / face | Atmospheric: 15 – 20 years | Commercial roofing, PPGI substrate, sandwich panels, fabrication |
| Z180 | 180 g/m² | ≈ 90 g/m² / face | ≈ 12.5 µm / face | Industrial / coastal: 20 – 30 years | Industrial roofing, PEB envelope, coastal commercial roofing, PVDF substrate |
| Z275 | 275 g/m² | ≈ 137.5 g/m² / face | ≈ 20 µm / face | Heavy industrial / coastal: 30 – 50+ years | Long-life roofing, coastal cladding, infrastructure, premium PPGI |
Export markets prefer different coating standards. Z80 / Z100 dominates parts of Asia and Africa, Z120 / Z180 is the GCC commercial standard, Z275 is the long-life coastal premium. Specify by project requirement, budget, corrosion exposure and destination market.
PE, SMP, HDP, PVDF: the architect's reference.
The paint system on a PPGI coil decides how it weathers, how it holds colour and how long the building keeps looking new. Four chemistries cover the full cost / performance spectrum.
Polyester
Economical roofing & cladding, inland exposure, short-life projects
Silicone-Modified Polyester
Commercial roofing in moderate UV / atmospheric exposure
High-Durability Polyester
Long-life industrial roofing, GCC inland & semi-coastal projects
Polyvinylidene Fluoride (Kynar 500 / Hylar 5000)
Architectural facades, coastal Gulf, premium long-life roofing
Any RAL classic, design or effect colour.
PPGI is custom-batched against the RAL colour standard. Stock colours below ship faster; bespoke RAL is produced to order against the project's minimum tonnage.
GI vs PPGI, and GI vs aluminium roofing.
| GI | PPGI | |
|---|---|---|
| Substrate | Hot-dip galvanized steel | Hot-dip galvanized steel + paint |
| Top finish | Bare zinc (silver / spangle) | Coloured paint (any RAL) |
| UV / colour | Weathers to dull grey | Long-term colour retention |
| Service life | 20 – 50 years (coating dependent) | 10 – 30+ years (paint dependent) |
| Cost | Lower | 10 – 40% premium over GI |
| Typical use | Industrial roofing, fabrication, ducting | Architectural roofing, facades, cladding |
| GI | Aluminium | Galvalume (AZ) | |
|---|---|---|---|
| Cut-edge protection | Excellent (sacrificial) | None (pitting risk in coastal) | Good |
| Heat reflectivity | Moderate | High | High |
| Weight | Heavier | Lightest | Medium |
| Workability | Standard roll-form | Soft, dents easily | Standard roll-form |
| Coastal life (bare) | 20 – 30 yrs at Z275 | Pitting in marine | 30+ yrs |
| Cost | Lowest | Highest | Medium |
Certified to ASTM, EN and JIS.
Every consignment is supplied with the mill-test certificate referencing the applicable substrate, coating and paint-system standard.
The galvanized authority for the region.
Mill-direct sourcing
Direct relationships with Asian, GCC and African mills, from Z80 to Z275, any RAL, mill-test certified.
Specification accuracy
Coating, paint, substrate and profile matched to the exposure category and design life of the project.
Multi-market supply
We ship GI and PPGI across the UAE, GCC, East & West Africa with the documentation each market requires.
Custom configuration
Thickness, width, length, profile, zinc coating, paint system, gloss and RAL, built to your requirement.
Lead time discipline
Stock GI grades ship within days; custom PPGI batches scheduled against published mill windows.
Engineering support
Specification guidance for architects, contractors, PEB fabricators and roofing installers, before you order.
Galvanized Iron (GI) and PPGI, defined.
Galvanized Iron (GI) is a generic industry term for hot-dip galvanized steel: a low-carbon steel substrate continuously coated with a metallurgically bonded layer of zinc on a Sendzimir line. PPGI (Pre-Painted Galvanized Iron) is GI coated with an organic paint film, polyester (PE), silicon-modified polyester (SMP), high-durability polyester (HDP) or polyvinylidene fluoride (PVDF), in any RAL colour. GI and PPGI are the dominant envelope, roofing and PEB substrates across the GCC, specified to ASTM A653, EN 10346 and JIS G3302, with zinc coatings Z80 to Z275 (g/m²) and paint systems engineered for life from 10 to 40+ years.
- GI standard
- ASTM A653 · EN 10346 · JIS G3302
- Zinc coating
- Z80 / Z120 / Z180 / Z275 (g/m² both faces)
- PPGI standard
- EN 10169 · ASTM A755
- Paint systems
- PE · SMP · HDP · PVDF
- Substrate grades
- CQ / DDQ / S280GD / S350GD / SGCC / SGCH
- Coatings beyond GI
- Galvalume (AZ150 / AZ185) · Galfan · GA / GI-painted
GI vs Galvalume (AZ)
Galvanized vs Aluminium-Zinc coated steel. Galvalume offers superior atmospheric corrosion life; GI offers superior cut-edge protection and lower cost.
| Property | GI (hot-dip galvanized) | Galvalume (Al-Zn) |
|---|---|---|
| Coating composition | 99 % zinc | 55 % Al + 43.4 % Zn + 1.6 % Si |
| Standard | ASTM A653 / EN 10346 | ASTM A792 / EN 10346 |
| Coating designation | Z80 – Z275 | AZ50 – AZ185 |
| Atmospheric corrosion life | Good | 2 – 4× longer than equivalent zinc |
| Cut-edge protection | Strong (sacrificial Zn) | Weaker, relies on Zn at the edge |
| High temperature | Up to ~ 230 °C | Up to ~ 315 °C |
| Appearance | Bright spangle / smooth | Silvery, fine spangle |
| Paintability | Excellent for PPGI | Excellent, Galvalume painted (PPGL) |
| GCC market share | Dominant industrial / roofing | Premium roofing / cold storage / industrial |
Z120 vs Z275 (zinc coating mass)
Two zinc coating classes for GI, Z120 is the GCC commercial industrial standard, Z275 is the long-life coastal premium.
| Property | Z120 | Z275 |
|---|---|---|
| Total zinc (g/m²) | 120 | 275 |
| Per face (g/m²) | 60 | 137.5 |
| Zinc thickness per face | ~ 8 µm | ~ 20 µm |
| Standard | EN 10346 / ASTM A653 | EN 10346 / ASTM A653 |
| Service life (C2 atmosphere) | 30 – 50 years | 60 – 100 years |
| Service life (C4 coastal / industrial) | 8 – 15 years | 25 – 40 years |
| Service life (C5-M severe marine) | 3 – 7 years | 10 – 20 years |
| Typical use | Roofing, ducting, PEB internal | Coastal Gulf, infrastructure, premium PEB |
| Cost premium | Baseline | + 15 – 25 % |
Hot Dip vs Electro Galvanized
Two zinc-coating processes, hot-dip is the industrial standard, electro-galvanized is the thin-coating cold-rolled alternative.
| Property | Hot Dip Galvanized (HDG / GI) | Electro Galvanized (EG / GA) |
|---|---|---|
| Process | Continuous immersion in molten zinc (~ 460 °C) | Electrolytic zinc deposition (room temperature) |
| Coating mass | Z80 – Z600 (60 – 460 µm) | 10 – 40 g/m² (1.5 – 5 µm) |
| Coating uniformity | Slight spangle, ~ 8 – 20 µm typical | Highly uniform, very thin |
| Substrate behaviour | Reduced cold-form / paint adhesion (heat affect) | Cold-rolled retains drawability |
| Outdoor / heavy corrosion | Yes, designed for exposure | No, light atmospheric only |
| Auto / appliance use | Limited | Standard for car body & appliance |
| Cost | Lower (mass production) | Higher (electrochemical) |
PPGI Paint Systems
Four organic coating chemistries cover the full cost / performance spectrum for PPGI.
| System | Top coat (µm) | UV / colour retention | Life (years) | Best use |
|---|---|---|---|---|
| PE (Polyester) | 18 – 25 | Moderate | 10 – 15 | Cost-effective roofing & cladding |
| SMP (Silicon-Modified) | 22 – 25 | Good | 15 – 20 | Industrial roofing, mid-tier facade |
| HDP (High Durability) | 25 – 28 | Very good | 20 – 25 | Premium roofing, coastal facade |
| PVDF (Kynar) | 25 – 30 | Excellent | 30 – 40 | Architectural facade, premium hospitality |
GI / PPGI procurement guide
Six-step framework for any GI / PPGI specification.
- 1. Define corrosion category
Identify ISO 9223 corrosivity category at the project site, C2 (rural / interior), C3 (urban), C4 (industrial / Gulf coastal), C5-M (severe marine / chemical). The category drives zinc mass and paint system.
- 2. Select zinc mass (or AZ)
Z80, interior dry. Z120, GCC commercial industrial standard. Z180, extended industrial / mild coastal. Z275, coastal Gulf / infrastructure / long-life premium. AZ150 / AZ185, Galvalume premium roofing.
- 3. Choose substrate grade
CQ (commercial quality), general sheet. DDQ (deep drawing), formed profiles. S280GD / S350GD / S550GD, structural roof / wall purlins. SGCC / SGCH, JIS commercial / hard.
- 4. Specify paint system (PPGI)
PE, cost-effective roofing, 10 – 15 yr. SMP, industrial roofing, 15 – 20 yr. HDP, premium roofing / coastal, 20 – 25 yr. PVDF, architectural premium / hospitality, 30 – 40 yr.
- 5. Confirm RAL colour and gloss
Stock RAL, 3009, 5010, 6005, 7035, 7016, 9002, 9006, ship faster. Custom RAL produced to order against minimum tonnage (typically 25 – 50 t). Gloss 30 / 50 / 70 specified by paint system and project requirement.
- 6. Plan documentation and freight
Mill test certificate (chemistry + zinc mass + coating adhesion), paint system report (T-bend, MEK rub, salt spray), RAL colour swatch, packing list with coil weights / IDs. Coil eyes vertical for storage, horizontal for cutting.
GI / PPGI inspection checklist
- Mill stamp / coil ID
Confirm coil tag matches packing list and MTC, grade, zinc mass, dimensions, heat number.
- Substrate verification
Substrate grade per ASTM A653 / EN 10346, CQ, S280GD, S350GD, SGCC etc. on MTC.
- Zinc coating mass
Triple-spot method (EN 10346), average and minimum spot mass meet the Z-class specification.
- Zinc coating adhesion
T-bend test (180° fold over its own thickness), no flaking on the inner radius.
- Surface inspection
Uniform spangle / smooth surface, no white rust, no oxidation, no edge waviness, no roll marks.
- Dimensional check
Thickness ± per ASTM A924 / EN 10143 tolerance. Width / length per order tolerance.
- Flatness & camber
Sheet flat within 5 mm / m, camber ≤ 5 mm per 5 m of length.
- PPGI paint thickness
Eddy-current gauge, primer 5 – 8 µm + topcoat 18 – 30 µm per the paint system specified.
- PPGI colour match (RAL)
Spectrophotometer ΔE ≤ 1.5 against the RAL reference chip.
- PPGI flexibility
T-bend (paint), MEK rub, impact test (cross-hatch + tape lift), pass criteria on coating report.
- Salt spray (random)
ASTM B117 salt-spray hours per system: PE 500, SMP 700, HDP 1000, PVDF 1500+ hours.
- Packing & strapping
Steel pallets, polyethylene wrap, intact strapping, no transit water damage, no edge dings.
Deeper questions, answered.
A complete authority FAQ bank built for architects, consultants, procurement teams and AI-search engines.
GI & PPGI: the questions architects and contractors ask.
Factory-Direct Supply Model.
TIC Dubai operates as a mill representation and international procurement partner. Every order is coordinated directly with a verified overseas manufacturer and shipped in container quantities against your project specification.
We do not maintain local warehouse stock. Products are supplied directly from carefully selected international manufacturing partners.
- Direct mill sourcing
- Container-load shipments
- Forward production bookings
- Project-based supply
- International procurement
- Mill-direct pricing
- Consistent, certified quality
- Long-term supply partnerships
Who we work with.
TIC Dubai partners with organisations that specify, import or build at project scale, across the UAE, GCC, Levant, Africa and wider Middle East.
How our supply model works best.
A quick view of where TIC Dubai adds the most value, and where a local stockist may serve you faster.
Container, project & repeat procurement.
- Container orders
- Factory bookings
- Project supply
- Repeat procurement
- Long-term contracts
- Bulk purchasing
Retail, spot & same-day pick-ups.
- Retail-quantity purchases
- Same-day requirements
- Spot warehouse pick-ups
If your requirement sits on the right, a local stockist is likely to serve you faster. We're happy to point you in the right direction.
Factory-direct sourcing, answered.
Do you keep stock in Dubai?
TIC Dubai is a mill representation and international procurement company. Rather than holding warehouse stock, we coordinate factory-direct shipments sized to your project and consolidate deliveries against your programme.
Can I buy a few sheets or a single length?
Our supply model is built around container-load and project quantities. For small retail requirements, a local stockist will serve you faster; for bulk, project or recurring procurement, we're the right partner.
Do you supply containers directly from the factory?
Yes. Every enquiry is quoted mill-direct, with forward production booking, third-party inspection and shipment coordinated by our procurement team, from FOB origin through to your discharge port.
Can you support recurring procurement?
Yes. Long-term supply agreements and forward production bookings are the core of what we do for importers, contractors, distributors and EPC firms across the GCC and wider Middle East.
What is your minimum order?
Typically one FCL container per specification, though this varies by product and mill. Share your requirement and we'll confirm the mill's MOQ, lead time and indicative pricing.
