    Laminated MDF (Melamine & Veneer)

    Pre-laminated MDF, available as single-face or double-face Melamine and Wood Veneer finished panels supplied in architectural decor ranges. The finished-surface MDF used by furniture manufacturers, joineries and fit-out contractors that want a press-ready panel.

    Overview

    Technical overview.

    Laminated MDF is a factory-finished panel: a raw or HMR MDF core that has been hot-pressed with a decorative melamine paper or natural wood veneer. Supplied in a wide range of solid colours, wood-grain decors and architectural finishes, it is the standard surface-ready panel for furniture manufacturers, hospitality joineries and fit-out contractors.

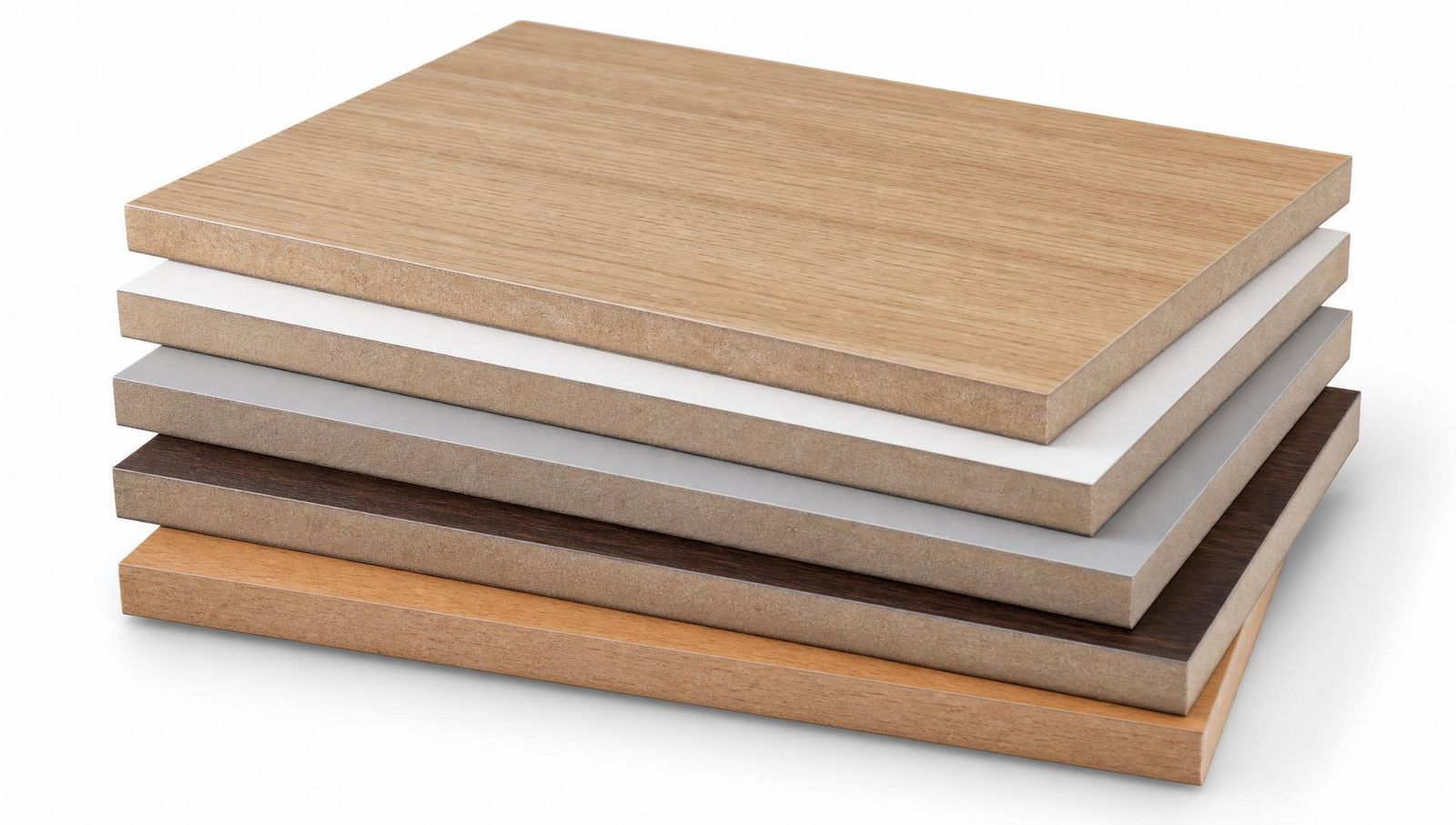

    Stacked laminated MDF boards in a multi-colour mix showing oak, white, grey, walnut and beech finishes with visible MDF core
    Multi-colour mix, oak, white, grey, walnut, beech

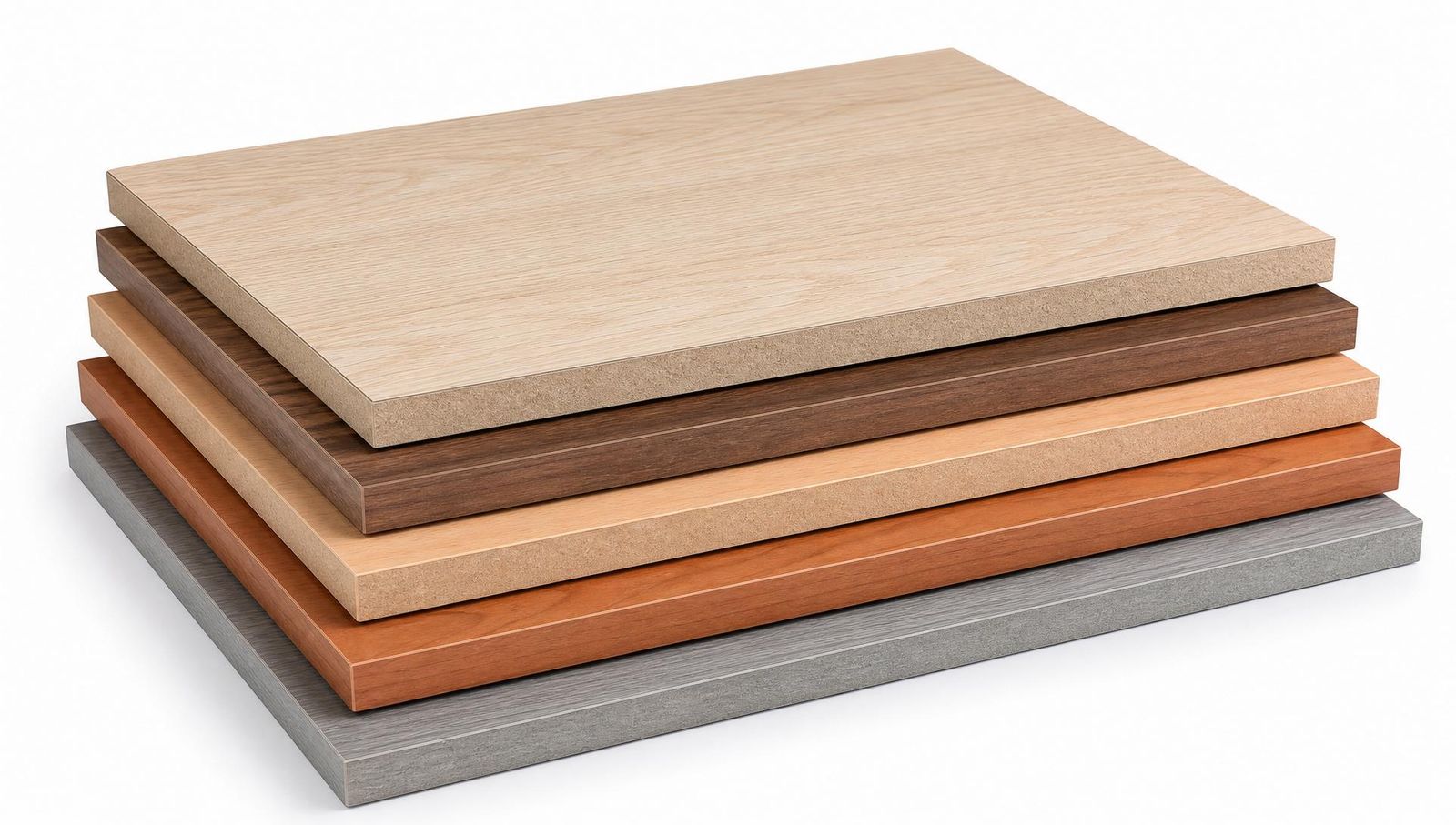

    Stacked wood-veneer laminated MDF panels in white oak, walnut, beech, cherry and ash grey finishes
    Wood veneers, white oak, walnut, beech, cherry, ash grey

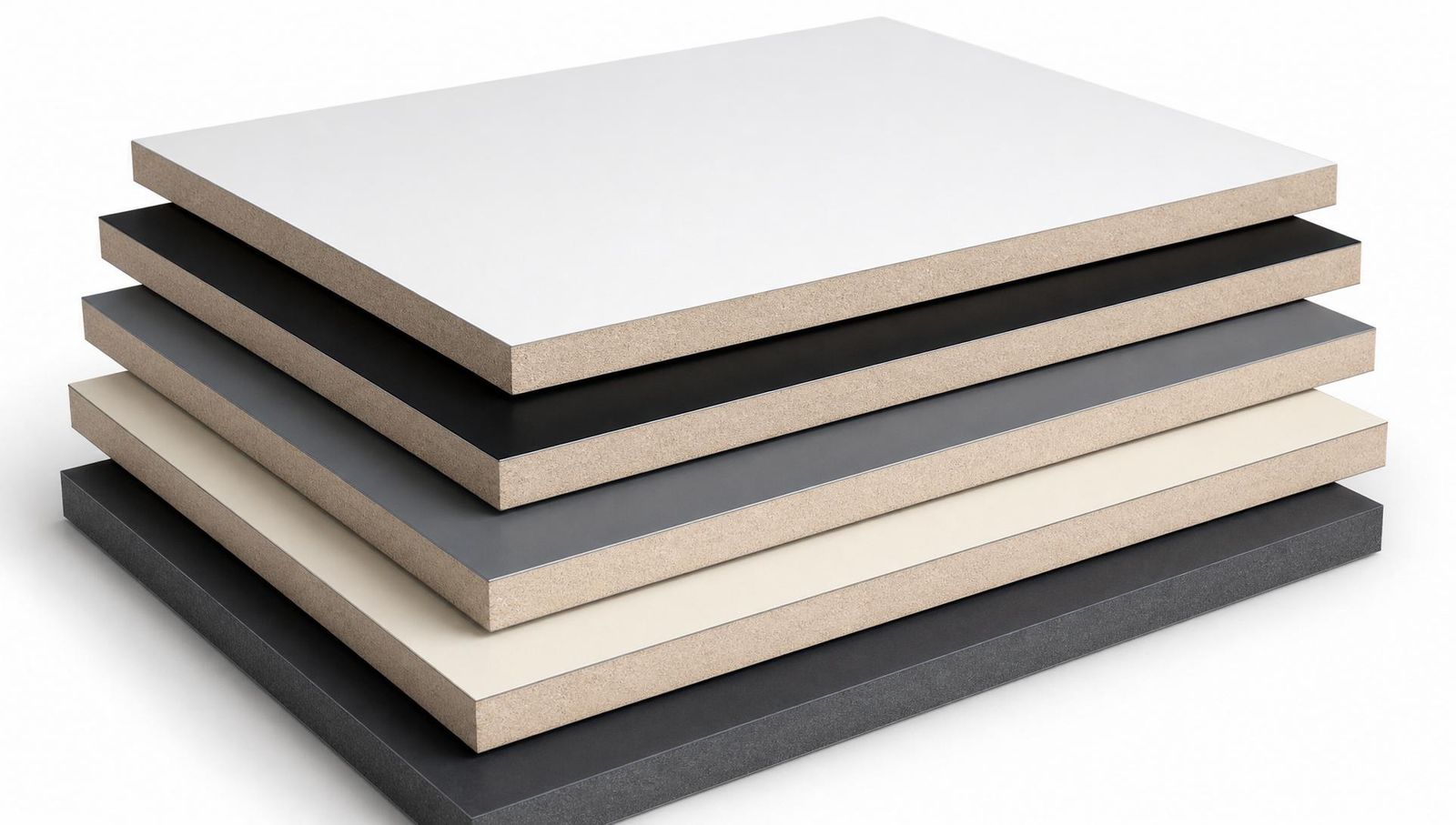

    Stacked solid-colour laminated MDF panels in white, black, slate grey, cream and charcoal finishes
    Solid colours, white, black, slate grey, cream, charcoal

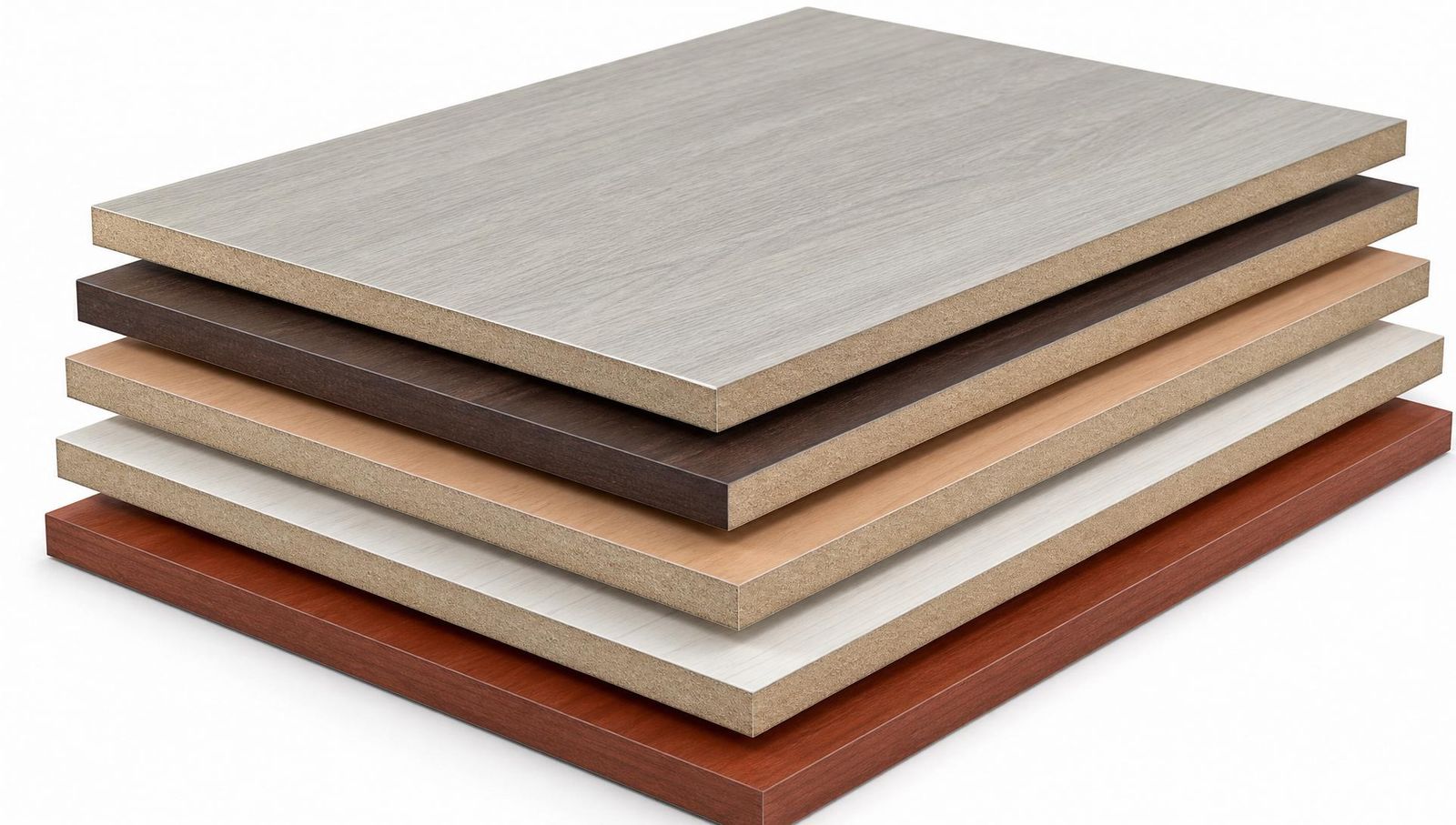

    Stacked trending-finish laminated MDF panels in light grey oak, espresso walnut, natural beech, whitewashed pine and classic cherry
    Trending finishes, light grey oak, espresso walnut, natural beech, whitewashed pine, classic cherry

    Laminated MDF panels are produced by hot-pressing a decorative impregnated paper (Melamine MDF) or a natural sliced wood veneer (Veneer MDF) directly onto an MDF core under heat and pressure. The result is a balanced, scratch-resistant, ready-to-use panel that eliminates the on-site lamination step and delivers consistent factory finish quality.

    Variants

    Laminated MDF variants.

    Melamine MDF

    Melamine Faced MDF

    MDF core pre-laminated with melamine-impregnated decorative paper in solid colours, wood-grain decors, matte, gloss and textured finishes. Scratch-resistant, easy-clean and the standard finished panel for modern cabinetry and shopfitting.

    Veneer MDF

    Wood Veneer MDF

    MDF core pre-laminated with natural sliced wood veneer (oak, walnut, maple, teak, sapele and architectural species). The finished panel for premium furniture, hospitality joinery and architectural interiors.

    Customer-Configurable

    Configured to your specification.

    Laminated MDF is supplied to project requirement. Specify the parameters below and we'll revert with a quote, mill availability and lead time.

    Parameter
    Core
    Raw MDF or HMR MDF (project requirement)
    Parameter
    Face configuration
    Single face / double face / balanced
    Parameter
    Thickness
    6 / 9 / 12 / 15 / 18 / 25 mm
    Parameter
    Panel size
    1220 × 2440 mm · 1830 × 2440 mm · 1830 × 3660 mm
    Parameter
    Melamine decors
    Solid colours · wood grains · matt · gloss · textured
    Parameter
    Veneer species
    Oak · walnut · maple · teak · sapele · architectural
    Parameter
    Emission grade
    E1 standard (CARB P2 on request)
    Parameter
    Origin
    Thailand · China · Malaysia · India · Vietnam
    Technical Specifications

    Density, strength, emissions.

    Core standard
    EN 622-5 (raw) or MDF.H (HMR)
    Surface
    Decorative melamine paper or natural sliced veneer
    Press process
    Short-cycle hot press, balanced both faces
    Abrasion (melamine)
    ≥ 150 revs (EN 14323)
    Adhesion
    Cross-cut adhesion class 0/1 (EN 311)
    Density
    700 – 780 kg/m³ (core)
    Formaldehyde
    E1: ≤ 0.124 mg/m³ (EN 717-1)
    Applications

    Where laminated mdf is specified.

    • Modular furniture manufacturing: cabinets, wardrobes, vanities
    • Hospitality joinery: guestroom panelling, F&B fit-out
    • Retail and shopfitting: display joinery, fixtures
    • Office furniture and partition systems
    • Architectural wall panelling and ceilings
    • Modular kitchen carcasses and shutters (HMR core)
    • Premium veneer doors and feature walls
    • Educational, healthcare and commercial interiors
    Thickness Reference

    Thickness Reference

    Educational guidance below. Final availability depends on customer requirement, origin mill and project quantity.

    3 mm
    Cabinet backs · drawer bottoms · mirror backing
    5 – 6 mm
    Light panelling · drawer bottoms · door skins
    9 mm
    Shelves · partition panels · light cabinetry
    12 mm
    Shelves · panelling · light carcasses · CNC profiles
    15 mm
    Cabinet carcasses · shutters · standard joinery
    18 mm
    Standard cabinetry · doors · shopfitting · worktop substrate
    25 mm
    Worktops · table tops · heavy joinery · feature walls
    Standards

    Certified to international specification.

    EN 622-5
    European standard for MDF, defining dry-process fibreboards, mechanical and physical requirements (general-purpose MDF and MDF.H moisture-resistant grades).
    EN 717-1
    European formaldehyde emission test by chamber method. It defines E1 emission class as ≤ 0.124 mg/m³ steady-state air concentration.
    CARB P2
    California Air Resources Board Phase 2 formaldehyde emission limit. Stricter than E1 and widely specified for premium furniture and US-market exports.
    FAQ

    Laminated MDF: answered.

    Specify · Quote · Ship

    Quote Laminated MDF.

    Share thickness, panel size, emission grade, origin preference and quantity. We revert with mill availability, lead time and pricing within one working day.
