Stack of red-tinted fire retardant FR MDF panels with characteristic red core in a premium woodworking facility
    Hospitality · Schools · Public buildings

    FR MDF, Fire Retardant / Flame Retardant / Fire-Rated

    Fire Retardant MDF, also known as Flame Retardant MDF and Fire-Rated MDF, engineered with fire-retardant chemistry and tinted red for instant identification on site. Specified by architects and fire consultants for hospitality, healthcare, schools, airports and public-building fit-out where Euroclass B fire performance is required.

    Overview

    Technical overview.

    Fire Retardant MDF, universally abbreviated FR MDF in architectural specifications and building codes, and also called Flame Retardant MDF and Fire-Rated MDF, is the specified panel substrate for any interior fit-out that must meet fire-performance regulations, including hospitality, healthcare, education, transport and public buildings. The fire-retardant chemistry is integrated into the panel during manufacture, not surface-applied, so the performance is consistent through the full panel thickness.

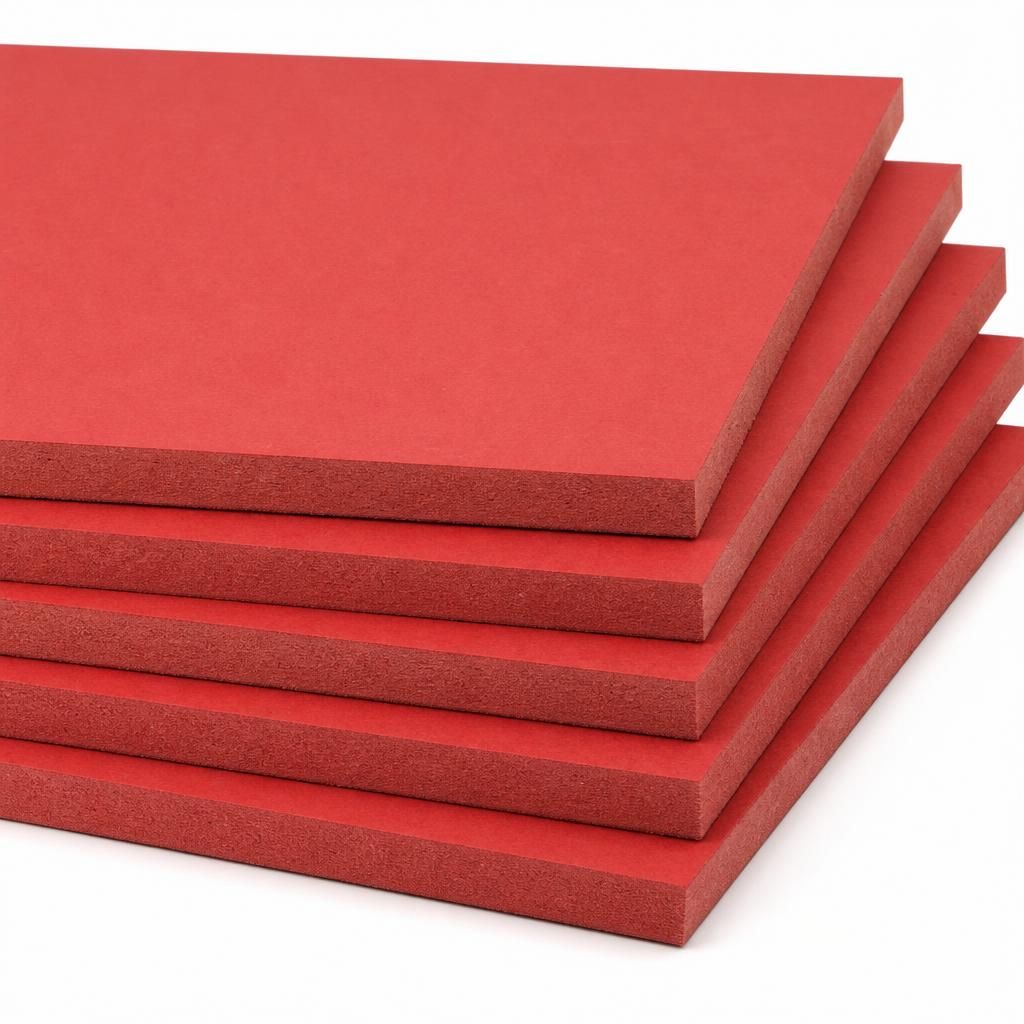

    Real stacked red FR fire-retardant MDF boards showing tinted red core and smooth sanded surfaces in multiple thicknesses

    FR MDF (Fire Retardant MDF / Flame Retardant MDF / Fire-Rated MDF) is a Medium Density Fibreboard manufactured with fire-retardant additives that suppress flame spread, reduce heat release and limit smoke generation. The retardant chemistry is dispersed homogeneously through the fibre mat before pressing, giving the finished panel a tinted red core that allows fast on-site verification. Performance is typically rated to Euroclass B-s1, d0 (EN 13501-1) or Class 1 (BS 476-7), depending on mill and grade.

    FR MDF is fire-retardant, not fire-proof. It is engineered to slow flame spread and smoke release for life-safety and code compliance; final fire performance always depends on the assembly, finish and detailing.

    Customer-Configurable

    Configured to your specification.

    FR MDF is supplied to project requirement. Specify the parameters below and we'll revert with a quote, mill availability and lead time.

    Parameter
    Thickness
    6 / 9 / 12 / 15 / 18 / 25 mm (per requirement)
    Parameter
    Panel size
    1220 × 2440 mm · 1830 × 2440 mm · 1830 × 3660 mm
    Parameter
    Fire rating
    Euroclass B-s1, d0 · Class 1 BS 476-7
    Parameter
    Emission grade
    E1 standard (CARB P2 on request)
    Parameter
    Origin
    Thailand · India · Malaysia · China
    Parameter
    Identification
    Red-tinted fibre core
    Technical Specifications

    Density, strength, emissions.

    Standard
    EN 622-5 + EN 13501-1 (fire classification)
    Fire reaction
    Euroclass B-s1, d0 (typical)
    UK classification
    Class 1 / Class 0 (BS 476-7 / BS 476-6)
    Density
    720 – 780 kg/m³
    Internal bond
    ≥ 0.60 N/mm²
    Modulus of rupture
    ≥ 22 N/mm²
    Modulus of elasticity
    ≥ 2500 N/mm²
    Surface
    Sanded smooth, red-tinted core
    Formaldehyde
    E1: ≤ 0.124 mg/m³ (EN 717-1)
    Applications

    Where fr mdf is specified.

    • Hospitality fit-out: hotel rooms, lobbies, corridors, F&B
    • Healthcare interiors: hospitals, clinics, laboratories
    • Schools, universities and educational buildings
    • Airports, transport terminals and public infrastructure
    • Cinemas, theatres and assembly venues
    • Commercial offices, lobbies and high-rise interiors
    • Wall panelling, ceilings and acoustic systems
    • Doors, partitions and built-in joinery in regulated spaces
    Thickness Reference

    Thickness Reference

    Educational guidance below. Final availability depends on customer requirement, origin mill and project quantity.

    3 mm
    Cabinet backs · drawer bottoms · mirror backing
    5 – 6 mm
    Light panelling · drawer bottoms · door skins
    9 mm
    Shelves · partition panels · light cabinetry
    12 mm
    Shelves · panelling · light carcasses · CNC profiles
    15 mm
    Cabinet carcasses · shutters · standard joinery
    18 mm
    Standard cabinetry · doors · shopfitting · worktop substrate
    25 mm
    Worktops · table tops · heavy joinery · feature walls
    Standards

    Certified to international specification.

    EN 622-5
    European standard for MDF, defining dry-process fibreboards, mechanical and physical requirements (general-purpose MDF and MDF.H moisture-resistant grades).
    EN 13501-1
    European reaction-to-fire classification (Euroclass) for construction products. It assigns ratings A1, A2, B, C, D, E, F with smoke (s1–s3) and droplet (d0–d2) modifiers. FR MDF is typically B-s1, d0.
    CARB P2
    California Air Resources Board Phase 2 formaldehyde emission limit. Stricter than E1 and widely specified for premium furniture and US-market exports.
    BS 476-7
    British surface spread of flame test. A historic UK fire classification used alongside EN 13501-1 in many regional specifications.
    FAQ

    FR MDF: answered.

    Specify · Quote · Ship

    Quote FR MDF.

    Share thickness, panel size, emission grade, origin preference and quantity. We revert with mill availability, lead time and pricing within one working day.
