    Kitchens · Wardrobes · Bathrooms · Hospitality

    HMR MDF (Green / Moisture Resistant)

    High Moisture Resistant Green MDF, manufactured with moisture-resistant melamine-urea-formaldehyde resin and tinted green for instant identification. The specification standard for kitchens, wardrobes, bathroom joinery and humid interior environments.

    Overview

    Technical overview.

    HMR (High Moisture Resistant) MDF, universally known as Green MDF for its tinted core, is engineered for humidity. The fibres are bonded with a moisture-resistant melamine-urea-formaldehyde (MUF) resin that dramatically reduces swelling and dimensional change in wet, humid and steam-exposed environments.

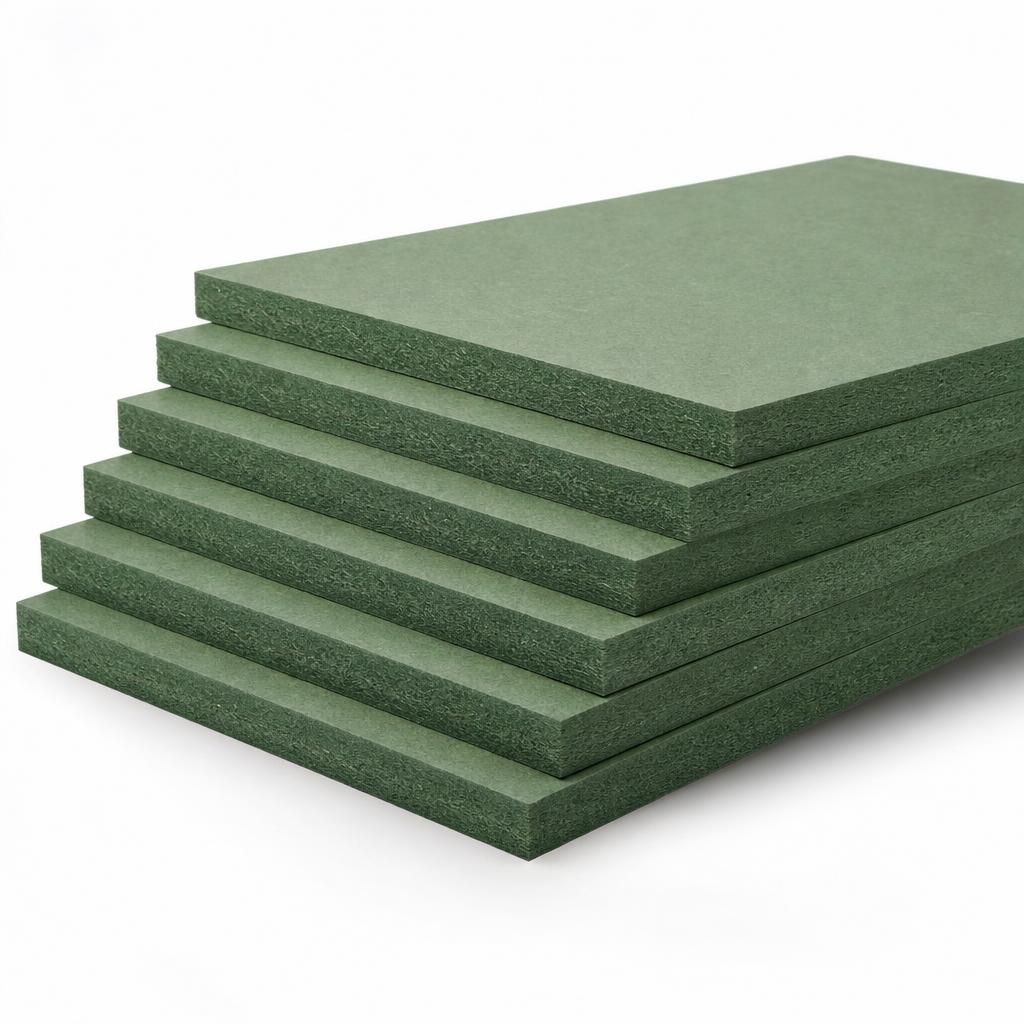

    Real stacked green HMR moisture-resistant MDF boards showing tinted green core and smooth sanded surfaces in multiple thicknesses

    Green MDF is a moisture-resistant MDF panel manufactured to the EN 622-5 MDF.H specification (and equivalent V313 cycle testing). The melamine-fortified resin reduces 24-hour thickness swell to under 8 %, compared with 15 – 25 % for raw MDF, making it the only MDF grade that should be specified for kitchens, bathrooms, vanities and any joinery exposed to humid air.

    Water resistant ≠ waterproof. HMR MDF resists humidity, steam and intermittent surface moisture; it should not be permanently submerged or used in standing water.

    Customer-Configurable

    Configured to your specification.

    HMR MDF is supplied to project requirement. Specify the parameters below and we'll revert with a quote, mill availability and lead time.

    Parameter
    Thickness
    5 / 6 / 9 / 12 / 15 / 18 / 25 mm (per requirement)
    Parameter
    Panel size
    1220 × 2440 mm · 1830 × 2440 mm · 1830 × 3660 mm
    Parameter
    Emission grade
    E1 standard (CARB P2 on request)
    Parameter
    Origin
    Thailand · India · Vietnam · Malaysia · China
    Parameter
    Density
    740 – 800 kg/m³
    Parameter
    Surface
    Sanded smooth, green-tinted core
    Technical Specifications

    Density, strength, emissions.

    Standard
    EN 622-5 MDF.H · V313 (3-cycle)
    Density
    740 – 800 kg/m³
    24-hr thickness swell
    ≤ 8 % (vs. 15 – 25 % for raw MDF)
    Internal bond (dry)
    ≥ 0.70 N/mm²
    Internal bond (after V313)
    ≥ 0.18 N/mm²
    Modulus of rupture
    ≥ 26 N/mm²
    Modulus of elasticity
    ≥ 2700 N/mm²
    Screw holding (face)
    ≥ 900 N
    Resin system
    Melamine-urea-formaldehyde (MUF)
    Formaldehyde
    E1: ≤ 0.124 mg/m³ (EN 717-1)
    Applications

    Where hmr mdf is specified.

    • Kitchen cabinet carcasses, shutters and worktop substrates
    • Wardrobe carcasses, shutters and internal joinery
    • Bathroom vanities and water-area furniture
    • Hospitality fit-out: hotel bathrooms, spa joinery, F&B
    • Commercial interiors: offices, retail, healthcare
    • Laundry, utility and humid-area cabinetry
    • Substrate for high-pressure laminates in wet areas
    • Marine fit-out interior joinery
    Thickness Reference

    Thickness Reference

    Educational guidance below. Final availability depends on customer requirement, origin mill and project quantity.

    3 mm
    Cabinet backs · drawer bottoms · mirror backing
    5 – 6 mm
    Light panelling · drawer bottoms · door skins
    9 mm
    Shelves · partition panels · light cabinetry
    12 mm
    Shelves · panelling · light carcasses · CNC profiles
    15 mm
    Cabinet carcasses · shutters · standard joinery
    18 mm
    Standard cabinetry · doors · shopfitting · worktop substrate
    25 mm
    Worktops · table tops · heavy joinery · feature walls
    Standards

    Certified to international specification.

    EN 622-5
    European standard for MDF, defining dry-process fibreboards, mechanical and physical requirements (general-purpose MDF and MDF.H moisture-resistant grades).
    EN 717-1
    European formaldehyde emission test by chamber method. It defines E1 emission class as ≤ 0.124 mg/m³ steady-state air concentration.
    EN 321 (V313)
    European cyclic moisture test for wood-based panels. A 3-cycle soak-freeze-dry sequence used to qualify HMR MDF for humid interior service.
    CARB P2
    California Air Resources Board Phase 2 formaldehyde emission limit. Stricter than E1 and widely specified for premium furniture and US-market exports.
    FAQ

    HMR MDF: answered.

    Specify · Quote · Ship

    Quote HMR MDF.

    Share thickness, panel size, emission grade, origin preference and quantity. We revert with mill availability, lead time and pricing within one working day.
