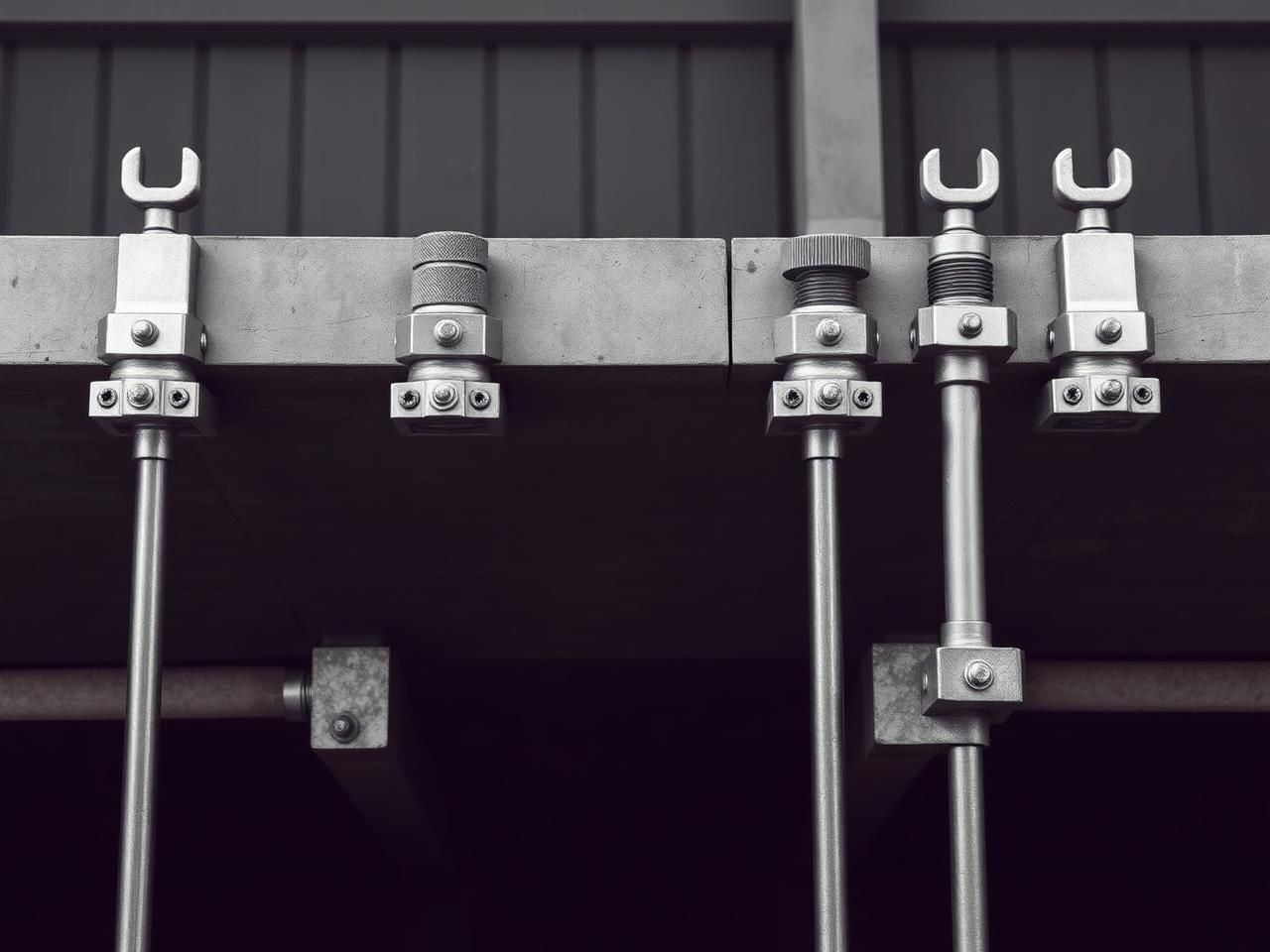

Adjustable steel props for slab, beam and vertical formwork support
Supplier: Approved Chinese manufacturing partnersAdjustable Pipe Support
Heavy-duty adjustable steel props for slab & formwork support
Overview
Engineered pipe support, supplied to project scale.
Galvanized adjustable steel props for vertical formwork and slab support across GCC construction. Supplied direct from approved Chinese scaffolding manufacturing partners, TIC Dubai's adjustable pipe support range covers light, medium and heavy-duty grades with hot-dip or electro-galvanized finish, height adjustment via threaded collar and forked or U-head tops to suit any formwork system.
Technical Specification
Standards, dimensions and origin.
Mill test certificates supplied on request. Bespoke specifications quoted against project requirements.
- Standard
- EN 1065 (European prop standard)
- Tube material
- Q235 / Q345 carbon steel
- Finish
- Hot-dip galvanized · electro-galvanized · painted
- Outer tube OD
- 48 mm / 56 mm / 60 mm
- Inner tube OD
- 42 mm / 48 mm / 51 mm
- Adjustment
- Threaded collar, fine-pitch
- Height range
- 1.8 – 2.5 m (D) · 2.0 – 3.5 m (E) · 2.6 – 4.2 m (F)
- Load capacity
- 1.8 – 3.6 tonnes (depending on grade & extension)
- Top fitting
- Fixed plate · U-head · forked head
- Origin
- China (approved partner mills)
Applications
Where it's used.
- Slab and deck formwork support
- Beam and column formwork shoring
- Re-shoring during concrete curing
- Temporary support during demolition
- Falsework for infrastructure works
- Tunnel and underground formwork
Sectors
Who specifies it.
- Building main contractors
- Infrastructure & civil works
- Precast concrete fabrication
- Plant hire and formwork rental fleets
FAQ
Adjustable Pipe Support: frequently asked questions.
Enquire
Send your pipe support requirement.
Share drawings, schedule and destination. We will revert with origin options, lead time and pricing.
